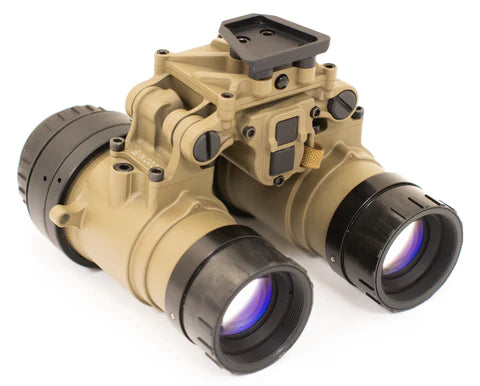

AB NightVision RNVG-A (Housing Only)
AB NightVision RNVG-A (Housing Only)
AB NightVision RNVG-A (Housing Only)

AB NightVision RNVG-A (Housing Only)


Discover the unparalleled durability and performance of the RNVG-A (Articulating Ruggedized Night Vision Goggle), a cutting-edge night vision binocular designed for the most demanding environments. Crafted from aircraft-grade aluminum, its billet-machined housing withstands harsh conditions with ease, surpassing MIL-STD-810H drop test standards by enduring falls onto concrete from heights that challenge even the toughest lenses and intensifiers.

Functionality meets innovation with the RNVG-A's user-friendly features, including easily accessible push-button switches for power and an IR illuminator, thoughtfully designed with a contoured guard to prevent accidental activation. Visual indicators keep the user informed about the IR illuminator's status and battery level, ensuring operational readiness. The goggle's versatile power options include a standard CR123 battery or an auxiliary power source via a 4-pin LEMO connector, providing approximately 16 hours of operation.

Optical excellence is at the core of the RNVG-A, offering mil-spec objectives and eyepieces with comprehensive adjustments. Focus seamlessly from 9.8 inches to infinity, and fine-tune your vision with diopter adjustments ranging from -6 to +2. The unique articulating design accommodates various interpupillary distances (from 47mm to over 80mm), enhancing comfort and versatility. Each optical pod can be independently rotated for natural vision, and when stowed, folds flat against the helmet to reduce neck strain and protect both the user and the device.

Available in Flat Black and Flat Dark Earth finishes, the RNVG-A features a non-reflective, durable matte finish, further enhanced by a black anodization or a tough Cerakote coating for the FDE variant. Experience night vision technology that combines robustness, adaptability, and optical precision with the RNVG-A.

RNVG-A Binocular Specifications Table:

Feature Specification
Power Source (1) CR123 Size Battery
Focus Range 9.8” to Infinity
Operation Time Approximately 16 hours on Lithium Battery
Magnification 1x (One Power)
Field of View 40 Degrees
Interpupillary Adjustment 47mm to over 80mm
Diopter Adjustment -6 to +2
Eye Relief 25mm
Weight 170g housing, 567g with standard optics, no battery
Dimensions 4.14” x 4.2” x 3.2”
IR Illuminator Built-in
Water Resistance Submersible to 66 ft
Indicators IR LED & Low Battery
Intensifier Tubes Compatible with MX-10160 style
Optics Compatible with PVS-14 Eyepiece and Objective
Warranty 5 years on housing, parts, and service per policy
